Main Form Products > Tapes > Tapes: Silicone - Aviation / Military
Silicone Rubber Electrical Tapes MIL-I-46852 / A-A-59163 / MIL-I-22444
All tapes meet 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
4529670544 Markel 5970-00-955-9976 Equivalent Electrical Insulating Tape
4529670544 Markel 5970-00-955-9976 Equivalent Electrical Insulating Tape
500°F / 260°C Continuous Exposure: Higher Intermittent
FlameShieldä Markel 4529670544 equivalent (NSN 5970-00-955-9976) triangular profile silicone rubber self-fusing compression tapes meeting MIL and commercial specification are used for a variety of critical electrical wiring and cable splicing and protection applications. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
Markel 4529670544 tapes have no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
This tape is available in almost any color, but oxide-red and black are the most common. The triangular tape has a guideline stripe in the center which aids in achieving a 50% spiral wrap. Triangular levelwrap tapes provide a smooth surface on spiral wrapping, preventing the tape wrap area from snagging when pulling a wire or cable through a bundle or over objects or openings.
4529670544 tapes provide superior electrical insulation with a minimum of 300 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 6000 volts per wrap of insulation value.
This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the back-shell clamp.

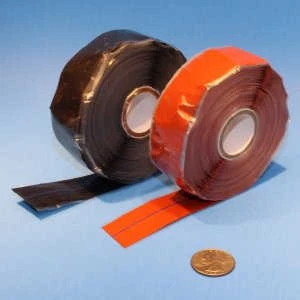

Markel 4529670544
NSN 5970-00-955-9976
NSN 5970-00-955-9976
Silicone Rubber Tape
Documents:
CofC / Test Reports
