Turbine Engine Exhaust Seal
4900159 / F-E15600
Documents:
CofC / Test Reports

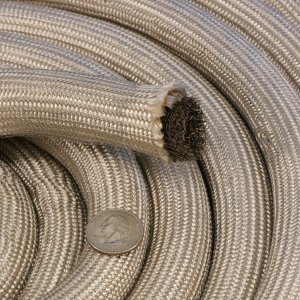

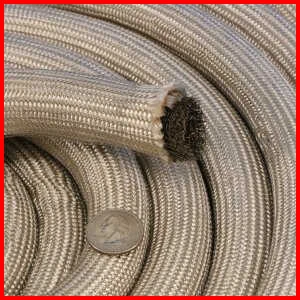

Turbine Engine Exhaust Shroud Gasket Rope Seal - part numbers 4900159 / F-E15600-00-00
1200°F / 648°C Continuous Exposure: Higher Intermittent
This high temperature, heat and flame resistant fiberglass gasket and seal rope is often used on gas turbine engine exhaust shroud, diffuser, cowl, plenum and stack components, and is fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. This engine configuration is used in generator applications
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable. The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.
The seals are jacketed with a knitted 304 stainless steel wire mesh, providing significant abrasion resistance. Supplied cut to length or available by-the-foot and in bulk quantity.
This seal can also be fabricated with Inconel, but the common part numbers listed in the catalog are supplied as standard with a stainless steel core and jacket. Some resellers inaccurately describe the standard seal as containing Inconel.
Available in precut lengths as part number R-TS-4900159-23 (23 feet long), R-TS-4900159-38 (38 feet long) & R-TS-4900159-48 (48 feet long). Used in GE LM2500 turbine for part number GE_4900159-38/A.
Available in by-the-foot lengths or bulk length as part number F-E15600-00-00.
Available in precut lengths as part number R-TS-4900159-23 (23 feet long), R-TS-4900159-38 (38 feet long) & R-TS-4900159-48 (48 feet long). Used in GE LM2500 turbine for part number GE_4900159-38/A.
Available in by-the-foot lengths or bulk length as part number F-E15600-00-00.
Custom rope seals for GE H, GE F Class, GE B&E Class, GE Frame 5, GE LM Class, GE GT11/GT24 (Legacy Alstrom), Siemens 800, Siemens H, Siemens V Class, Siemens Aero (Legacy Rolls Royce), Siemens 501 F&G, Siemens/Westinghouse 501 A-D, Mitsubishi J Unites, Mitsubishi 501 F&G, PW Power Systems FT4, PW Power Systems FT8
Turbine Engine Exhaust Shroud Gasket Rope
4900159-23 4900159-38 4900159-48
