Silicone Rubber Electrical Tapes MIL-I-46852 / A-A-59163 / MIL-I-22444

All tapes meet 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).

ABS 5334 Airbus Standard 66N 67N Silicone Rubber Electrical Insulation Tape

500°F / 260°C Continuous Exposure: Higher Intermittent

FlameShieldä Airbus Standard ABS 5334 equivalent silicone rubber tapes meet MIL and commercial specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.

Airbus Standard ABS 5334 silicone rubber tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

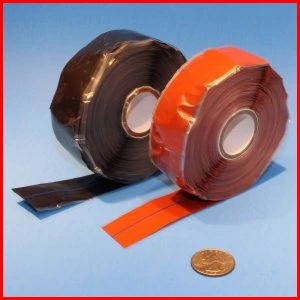

Both versions are 0.75" wide: ABS5334A02R is 0.012" thick and Oxide-red. ABS5334A01B is 0.020" thick and Black.

Airbus Standard ABS5334 tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the back-shell clamp.

ABS5334A02R can be used for NSN 5970-14-467-8824. ABS5334A01B can be used for NSN 5970-14-474-7041.

Download PDF Catalog Page

How our on-line cart system works If an item has a price of $0.00 call our order desk to complete a purchase

Airbus ABS5334

Silicone Rubber Tapes

Documents:

CofC / Test Reports
