"Heat Reflecting Aluminized Sleeves" Sub-category
Aluminized - Aluminum Foil Coated Fiberglass Heat Reflective Sleeve - High Bulk Convoluted
High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing
450°F / 232°C Continuous Exposure / 1000°F / 537°C Peak Exposure
This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.
The sleeve slides easily over wires, cables and hoses due to the smooth inner fiberglass surface. This aluminized sleeve reflects more than 95% of the radiant energy that hits its surface, keeping the underlying cables, hoses and wires cool. Available in sizes from 1/2" through 2.5" ID.
This sleeve is also used extensively for automotive and truck under-hood engine compartment applications.
Aluminized Aluminum foil coated fiberglass is suitable for most static applications where occasional flexing may be anticipated. Long term flexing may cause the foil to crack.
Aluminized Aluminum foil coated fiberglass is suitable for most static applications where occasional flexing may be anticipated. Long term flexing may cause the foil to crack.
This heat reflecting sleeve is a high-bulk and convoluted construction. The fiberglass substrate has a PET inserted filament included with the fiberglass fibers, providing good crush resistance and pushback against compression.

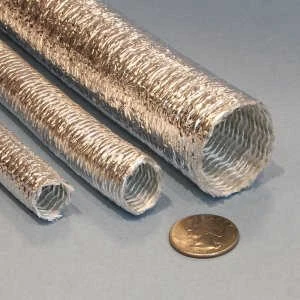

Heat Reflecting
Convoluted Sleeve
Convoluted Sleeve
Documents:
CofC / Test Reports
Part Numbers:
S-FG-AL-CONVOL-0.375-M010-06, S-FG-AL-CONVOL-0.500-M013-08, S-FG-AL-CONVOL-0.620-M016-10, S-FG-AL-CONVOL-0.750-M019-12, S-FG-AL-CONVOL-M-0.875-M022-16, S-FG-AL-CONVOL-1.000-M025-16, S-FG-AL-CONVOL-1.250-M032-20
