Main Form Products > Tapes > Tapes: Silicone - Aviation / Military

CHR4440 Silicone Rubber Self Fusing Electrical Tape meeting MIL-I-46852


500°F / 260°C Continuous Exposure: Higher Intermittent

FlameShieldä CHR4440 equivalent triangular (Type II) profile silicone rubber self-fusing self-amalgamating compression tapes meeting Mil-I-46852 specification are used for a variety of critical electrical wiring and cable splicing and protection jobs.  Especially suited for aviation and marine environments, as well as outdoor weathering environments.

The tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself.  The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade.  This tape makes a waterproof, weatherproof and air tight protection.

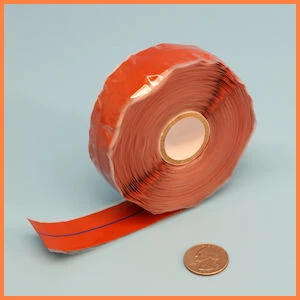

This tape is oxide-red.  The triangular tape has a guideline stripe in the center which aids in achieving a 50% spiral wrap.  Triangular tapes provide a smooth surface on spiral wrapping, preventing the tape wrap area from snagging when pulling a wire or cable through a bundle or over objects or openings.  Triangular Mil-i-46852 tapes are sometimes referred to as a centerline tape due to the guideline running down the center of the tape.
MILI46852 Silicone Tape Electrical Tape
FlameShieldä tapes meeting Mil-I-46852 provide superior electrical insulation with a minimum of 300 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 6000 volts per wrap of insulation value.

This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.


To buy this product now on-line, use the shopping cart product selector below.
Any Problems?... Call 610-906-3549 for immediate help - Then press 1 for the Order Desk or 2 for Technical Support.
Silicone Rubber Self Fusing Tape
Self-bonding self-fusing silicone rubber tape. Meets MIL-I-46852 specifications.

Type II (Triangular) profile. Oxide-red color.
$ 37.91
Add
Certificate of Conformance and Test Report Documents
Silicone Rubber Self Fusing Tape
Add Certificate of Conformance and Test Reports if required to your order
$ 0.00
Add
