Product & Material Specifications

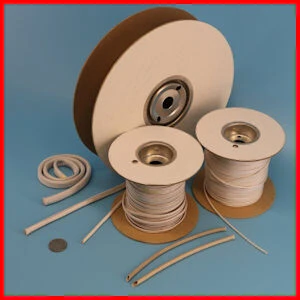

Braided E Type Fiberglass Sleeve Specifications
E Glass Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.55-2.58
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength at 22C: 500,000-550,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.5 - 4.9%
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TE
Dielectric Strength: Provides space factor electrical insulation of approximately 650 volts
Volume Resistivty at 22°C and 500 volts DC, ohm-cm: 10 to the 15 -10 to the 16
Dielectric Constant at 22°C, 60Hz: 6.5 - 6.8
Dissipation Factor @ 22°C, 1 MHz: 0.001 - 0.005
