Main Form Products > Fabrics > Fabrics - Silicone Coated Fiberglass

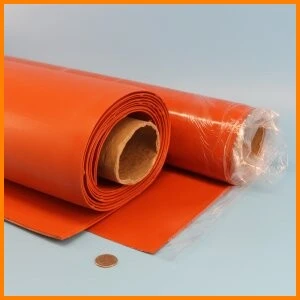

Silicone Rubber Coated Fiberglass Fabrics - 1 and 2 side coated


FlameShield™ High temperature, heat and flame resistant silicone rubber coated fiberglass fabrics are used in a variety of applications to form protective covers and shields to protect equipment and assets from extreme environmental and process exposures.  High temperature and heat resistant.  Excellent protection against welding splatter, sparks, molten metal splash and slag.

Can be cut into shapes and fastened into place with standard fasteners such as rivits, screws and bolts and also sewn with industrial sewing machines.

These fabrics are available in 40" and 60" roll widths.  Available in cut to length by-the-yard or in rolls of 25, 50, 100 and 150 foot lengths.

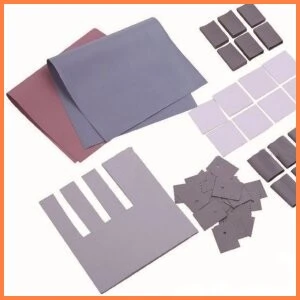

Semiconductor Heat Transfer Fabric - High Thermal Conductivity - Silicone Rubber Coated Fiberglass / Kapton Fabric - 2 side coated


400°F / 204°C Continuous Exposure: Higher Intermittent

FlameShield™ High thermal conductivity fabric is designed as a heat transfer fabric for mounting semiconductors.

Can be cut into shapes.

This fabric is available in a 16" roll width.

silicone rubber coated fiberglass fabrics

Silicone Rubber Coated Fiberglass Fabric - 1 side coated


High Temperature Heat, Weld Splatter, Grinding Spark, Molten Splash, Slag Resistant


500°F / 260°C Continuous Exposure: Higher Intermittent

FlameShield™ High temperature, heat and flame resistant silicone rubber coated fiberglass fabric is used in a variety of applications to form protective covers and shields to protect equipment and assets from extreme environmental and process exposures.

Can be cut into shapes and fastened into place with standard fasteners such as rivits, screws and bolts and also sewn with industrial sewing machines.

This fabric is available in a 40" roll width.  Weight is 50oz/square yard or 98oz/square yard.  Available cut to length by-the-yard or in full roll lengths.

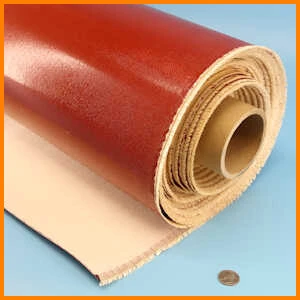

1 side coated - 50oz/square yard

This fabric is available in a 40" roll width.  Weight is 50oz/square yard.  Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.

fiberglass fabric with silicone rubber coating 1 side high temperature heat resistant

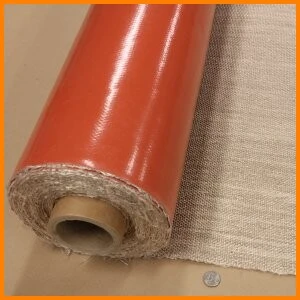

1 side coated - 98oz/square yard

This fabric is available in a 40" roll width.  Weight is 98oz/square yard.  Available cut to length by-the-yard or in 25 yard / 75 foot roll lengths.

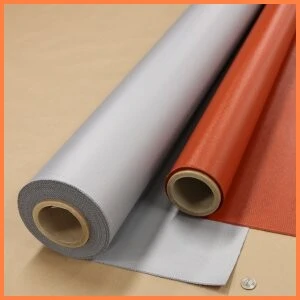

Silicone Rubber Coated Fiberglass Fabric - 2 side coated


High Temperature Heat, Weld Splatter, Grinding Spark, Molten Splash, Slag Resistant


500°F / 260°C Continuous Exposure: Higher Intermittent

FlameShield™ High temperature, heat and flame resistant 2 side coated silicone rubber coated fiberglass fabric is used in a variety of applications to form protective covers and shields to protect equipment and assets from extreme environmental and process exposures.

Can be cut into shapes and fastened into place with standard fasteners such as rivits, screws and bolts and also sewn with industrial sewing machines.

This fabric is available in a 60" roll width.

Light weight is 15 to 17 oz/square yard, medium is 18 to 25 oz/square yard and heavy duty is 32oz/square yard.  Available cut to length by-the-yard or in full roll lengths.

silicone rubber coated fiberglass fabrics
Light Duty

2 side coated - 8.5 to 18 oz/square yard

  • 8.5 oz   .009" thick    silver/grey
  • 15 oz    .014" thick    silver/grey
  • 18 oz    .015" thick    silver/grey and oxide-red

These fabrics are available in a 60" roll width.   Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.


Medium Duty

2 side coated - 18 to 26 oz/square yard

  • 18 oz    .018" thick    silver/grey or oxide-red
  • 26 oz    .019" thick    silver/grey and oxide-red

These fabrics are available in a 60" roll width.  Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.


Heavy Duty

2 side coated - 32 to 96 oz/square yard

  • 32 oz    .032" thick    silver/grey or oxide-red
  • 45 oz    .060" thick    oxide-red  in 40" and 60" widths
  • 65 oz    .070" thick    oxide-red in 40" and 60" widths
  • 96 oz    .125" thick    oxide-red in 40" width

  • These fabrics are available in 40" and 60" roll widths.  Weight is from 32 to 96 oz/square yard.  Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.

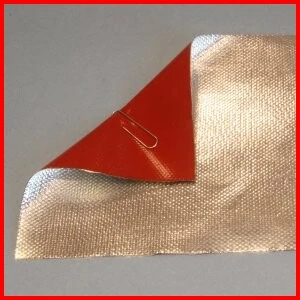

    Fiberglass fabric one side aluminized PET one side silicone rubber

    Aluminum Film Coated Fiberglass Radiant Heat Reflective Fabric with Silicone Rubber Vapor Barrier - High Temperature Heat Resistant


    500°F / 260°C Continuous Exposure: Higher Intermittent

    Dual-Coat high temperature fabric is a high temperature, heat resistant dual coated (aluminum film one side - silicone rubber one side) fabric that  reflects radiant heat and is the perfect protection material for equipment covers such as cylinders bellows, that require a vapor barrier on the side opposite the heat reflecting side.

    This heat reflective fabric reflects 95% or more of the radiant heat that contacts its surface.  Constructed from a high-temperature base fabric which is then coated with aluminum film or aluminum foil.

    Designed for long term continuous operation at 500°F / 260°C, this fabric will withstand short duration exposure to higher temperatures.

    silicone rubber coated fiberglass fabrics

    Silicone Rubber Coated Fiberglass Fabric - 2 side coated Premium Grade - Gasket & Conveyor Belt Applications


    High Temperature Heat, Weld Splatter, Grinding Spark resistant

    450°F / 232°C Continuous Exposure: Higher Intermittent

    FlameShield™ High temperature, heat and flame resistant 2 side coated silicone rubber coated fiberglass fabric is used in a variety of applications to form protective covers and shields to protect equipment and assets from extreme environmental and process exposures.

    Can be cut into shapes and fastened into place with standard fasteners such as rivits, screws and bolts and also sewn with industrial sewing machines.

    • 10 oz    .009" thick     white
    • 16 oz    .015" thick     red or white
    • 22 oz    .020" thick     red
    • 22 oz    .022" thick     red or white
    • 24 oz    .023" thick     red
    • 32 oz    .030" thick     red
    • 41 oz    .040" thick     white

    These fabrics are nominal 39" roll width - see PDF for specific width information..

    silicone rubber coated fiberglass fabrics

    Silicone Rubber Coated Fiberglass Fabric - 2 side coated - FDA Food Grade


    500°F / 260°C Continuous Exposure: Higher Intermittent

    FlameShield™ High temperature, heat and flame resistant 2 side coated silicone rubber coated fiberglass fabric is used in a variety of applications to form protective covers and shields to protect equipment and assets from extreme environmental and process exposures.

    Can be cut into shapes and fastened into place with standard fasteners such as rivits, screws and bolts and also sewn with industrial sewing machines.

    This fabric is available in a 60" roll width.
