Main Form Products > Sleeve Groups > 1200°F / 648°C - FIBERGLASS SMALL AWG SIZED GROUP
"Fiberglass & Ceramic Small Diameter & AWG Wire Sized Sleeve" Sub-category
e-glass with silicone
resin binder
Documents:
CofC
Please contact our order desk for quantities
over 1000 feet or sizes larger than 1"
over 1000 feet or sizes larger than 1"

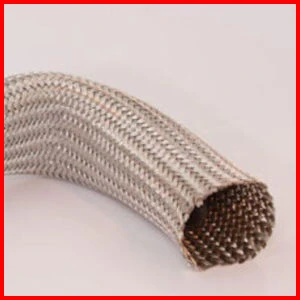

Braided E Type Fiberglass Sleeve - Small Diameter AWG Size Wire Protection - with Silicone Resin Binder
High Temperature, Heat & Flame Resistant and Thermal Insulating
392°F / 200°C Continuous Exposure: Higher Intermittent
This high temperature and heat resistant braided fiberglass (fibreglass / glassfibre) sleeve, fabricated from high quality E-Type fiberglass filaments that will not burn and has been saturated with a silicone resin binder. It will withstand continuous exposure to temperatures of 392°F / 200°C. It provides excellent protection for wires and wiring. It is used in electrical equipment such as electric motors, equipment leads, relay and heating cables. It has good abrasion and radiation resistance and is used in aerospace and nuclear energy applications.
Conforms to NEMA TF-2 and made from fibers conforming to MIL-Y-1140 (latest version), Class C, Form 1 (continuous filament yarns). Meets VW-1 flammability requirements.
This high temperature sleeve / heat resistant sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.. 100% Asbestos free. Minimum outgassing and accepts potting compounds.
