Hose - Air Applications - Summary
Summary of hose for air applicationsHose
Hose - Air/Water - General Purposes Push-On - 300 PSI
Reinforced with braided polyester yarns and designed for the quick and easy insertion of barbed fittings with no clamping or crimping required.
The reinforcement braid provides compression around the fitting up to the normal working pressure.
Tube and cover are oil resistant and non-conductive. Not recommended for gasoline.
Standard lengths of 250 feet.
Tech Data:
Tube: Black, NBR (ARPM Class A)
Cover: Black, NBR/PVC (ARPM Class A)
Reinforcement: Braided polyester cord
Safety Factor: 4:1
Working Pressure: 300 PSI
Temperature: -20F to 180F
Marking: PUSH-ON 200 - <ID> - 300 PSI WP - LOT
Hose - Air & Fluids - Multi Purpose - 300 PSI
This hose is principally designed for Air handling use and applications, but is also a good general purpose multi-purpose hose for fluids including some petroleums.
This hose is an excellent high quality multi-purpose hose for applications that require oil resistance and higher working pressures up to 300 PSI..
The inner tube handles oil-laden air mist, lubricating oils and also mild alkalis or caustic solutions.
Standard coil lengths of 600 feet are available for sizes 1/4", 3/8", 1/2", 3/4" ID. The coil length is 400 feet for 1" ID; 300 feet for 1 1/4"; 250 feet for 1 1/2"; 200 feet for 2" ID.
Technical Data:
Tube material: Black, NBR (ARPM Class B); 2 layer each reinforced
Cover material: Red, NBR/PVC (ARPM Class C)
Reinforcement: Braided polyester cord
Safety Factor: 3:1
Working Pressure: 300 PSI for smallest sizes; 250 PSI for 2" ID size
Temperature Range: -20F to 180F
Marked as: MULTI-PURPOSE AIR HOSE - <ID> - XXX PSI WP-LOT
Hose - General Service - Air & Fluids - 250 PSI
Principally designed for Air applications, but a good multi-purpose hose for fluids including some petroleums.
Excellent quality multi-purpose hose for applications requiring oil resistance and higher working pressures.
Tube handles oil-laden air, lubricating oils and mild alkalis or caustic solutions.
Standard lengths vary with size of hose. In some sizes 600 foot reels are available.
Tech Data:
Tube: Black, EPDM
Cover: Red or Black, SBR/EPDM
Reinforcement: Braided polyester cord
Safety Factor: 3:1
Working Pressure: 300 PSI for smallest sizes; 250 PSI for 2" ID size
Temperature: -20F to 180F
Marking: MULTI-PURPOSE AIR HOSE - <ID> - XXX PSI WP-LOT

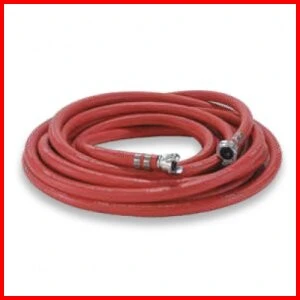

Hose - General Service & Air - 50 foot Assembly - 250 PSI
A tough, heavy duty, abrasion and ozone-resistant general service hose assembled with plated universal fittings, secured with a choice of two galvanized steel bands on each end or with crimp fittings. One male fitting and one female fitting.
Principally designed for Air applications, but a good multi purpose hose for fluids including water, some petroleums, and some chemicals.
Assembled length is 50 feet.
Tech Data:
Tube: Black, EPDM
Cover: Red or Black, SBR/EPDM
Reinforcement: Braided polyester cord
Safety Factor: 3:1
Working Pressure: 250 PSI
Temperature: -20F to 180F
Marking: MULTI-PURPOSE AIR HOSE - <ID> - XXX PSI WP-LOT
Hose - General Service & Air - Textile Air Hose - 300 PSI
Heavy duty, multi-purpose, textile reinforced hose for service where a tough and rugged hose is required.
Standard length is 100 feet. Also available in cut lengths. By-the-foot and by-the-yard.
Tech Data:
Tube: Black, Nitrile blend
Cover: Yellow, EPDM/SBR blend
Reinforcement: High tensile tire cord
Safety Factor: 4:1
Working Pressure: 300 PSI
Temperature: -40F to 220F
Marking: HIGH TENSILE AIR HOSE - 300 PSI WP
Hose - General Service & Air - Heavy Duty Air Hose - Up to 1000 PSI
Extreme Heavy duty for heavy construction, mining, heavy industry.
Braided steel wire reinforcement.
Standard length is 100 feet. Also available in cut lengths. By-the-foot and by-the-yard.
Tech Data:
Tube: Black, Nitrile/SBR blend
Cover: Yellow, SBR blend (pinpricked for early failure indication)
Reinforcement: Multiple steel wire braid
Safety Factor: 4:1
Working Pressure: Up to 1000 PSI
Temperature: -22F to 185F
Marking: STEEL AIR HOSE - XXXX PSI MAX WP
