Silicone Rubber Self Fusing Electrical Tape with National NSN / NATO Stock Number MIL Spec Tapes

500°F / 260°C Continuous Exposure: Higher Intermittent

FlameShieldä silicone rubber self-fusing self-amalgamating compression tapes meet many MIL and commercial specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.

The tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

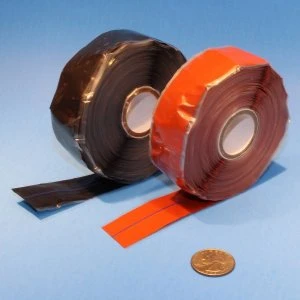

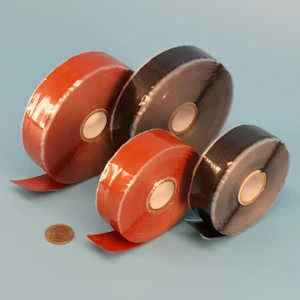

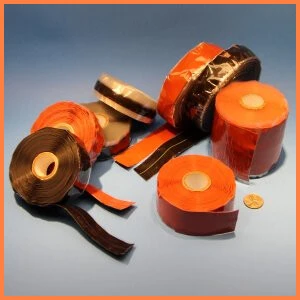

These tapes may be either red or black although some are other colors such as white, green, blue. Most Type II tapes have a center guideline. The guideline stripe in the center which aids in achieving a 50% spiral wrap and provides a smooth surface on spiral wrapping, preventing the tape wrap area from snagging when pulling a wire or cable through a bundle or over objects or openings.

This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.

CALL FOR PRICING

These tapes are not interchangeable. The NSN number specifies other parameters of the tape such as thickness, profile, width, reinforcement, rubber composition, etc.

NSN Numbers: Color Our Part Number

5970-00-082-3226          Black                      T-SR-NSN-00-082-3226
5970-00-177-1627          Black                      T-SR-NSN-00-177-1627
5970-00-446-3928          Black                      T-SR-NSN-00-446-3928
5970-00-446-8928          Red                        T-SR-NSN-00-446-8928
5970-00-480-1329          Red                        T-SR-NSN-00-480-1329
5970-00-782-5056          Red                        T-SR-NSN-00-782-5056
5970-00-839-0824          Red                        T-SR-NSN-00-839-0824
5970-00-841-1172          Red                        T-SR-NSN-00-841-1172
5970-00-949-4846          Red                        T-SR-NSN-00-949-4846
5970-00-955-9976          Black                      T-SR-NSN-00-955-9976
5970-01-140-5672          Red                        T-SR-NSN-01-140-5672

5970-01-142-8454 Red T-SR-NSN-01-142-8454

5970-01-147-3595          Red or Black               T-SR-NSN-01-147-3595
5970-01-250-8756          Red                        T-SR-NSN-01-250-8756
5970-01-259-5830          Red or Black               T-SR-NSN-01-259-5830

5970-01-263-0373 Red T-SR-NSN-01-263-0373

5970-01-263-3931 Black T-SR-NSN-01-263-3931

5970-01-273-6030 Red or Black T-SR-NSN-01-273-6030
5970-01-276-5277 Red or Black T-SR-NSN-01-276-5277

5970-01-286-7456          Red                        T-SR-NSN-01-286-7456
5970-01-342-8289          Black                      T-SR-NSN-01-342-8289
5970-01-396-1601          Red                        T-SR-NSN-01-396-1601
5970-01-432-6018          Red                        T-SR-NSN-01-432-6018

5970-01-450-4130          Black                      T-SR-NSN-01-450-4130
5970-01-491-8992          Black                      T-SR-NSN-01-491-8992
5970-01-495-5211          Black                      T-SR-NSN-01-495-5211
5970-01-541-9092          Red or Black               T-SR-NSN-01-541-9092
9320-01-552-7024          Red or Black               T-SR-NSN-01-552-7024
5970-01-560-3208          Red or Black               T-SR-NSN-01-560-3208

5970-01-596-7929          Red or Black               T-SR-NSN-01-596-7929
5970-01-600-6091          Red                        T-SR-NSN-01-600-6091
8030-01-587-1885          Red                        T-SR-NSN-01-587-1885
5970-14-459-8605          Black                      T-SR-NSN-14-459-8605

5330-01-479-4233 Black T-SR-NSN-01-479-4233

9320-01-310-3746 Black T-SR-NSN-01-310-3746
