Thermal Insulating & Protection Sleeves

Plain e-Fiberglass Thermal Insulating and Protection Sleeves

Plain e-Fiberglass sleeve and sleeving to protect wires, cables, tubing, hoses and pipes from heat loss or heat gain.

Sleeves to protect personnel from burns by accidental contact with hot pipes or hoses.

Versions:

Plain Premium Knit
Plain Premium Braid
Plain Industrial Braid
Plain Premium Braid Heat Treated

Specifications:

Technical Specifications

Fiber Type: E Glass

Specific Gravity: 2.54-2.69

Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet

Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C

Tensile Strength: 450,000-500,000 psi.

Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.

Breaking Elongation: 4.81% Std. 4.81% Wet

Elastic Recovery: 100%

Effect of Bleaches and Solvents: Unaffected

Average Stiffness: 2824.3 cn/TE

If the application requires a sleeve ID that is wire gauge size (AWG) please look at our summary page of AWG wire sized sleeves.

Please contact our technical support for application help if your environment includes exposure to direct flame, fire, liquid metals, spatter, slag, etc.

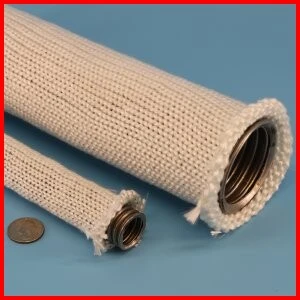

Knitted Fiberglass Sleeve - Premium Grade - Wire Cable Hose Pipe Protection

High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent

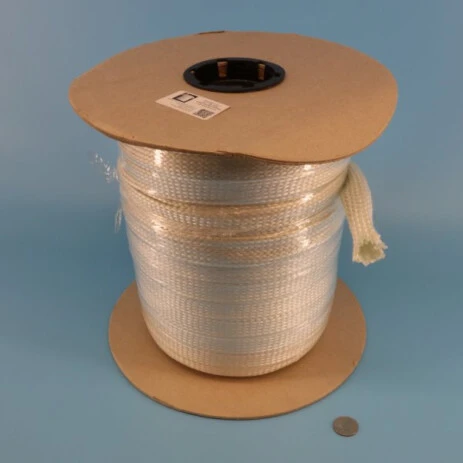

Braided Fiberglass Sleeve - Premium Grade - Wire Cable Hose Pipe Protection

High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent

Braided Fiberglass Sleeve - Industrial Grade - Wire Cable Hose Pipe Protection

High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent

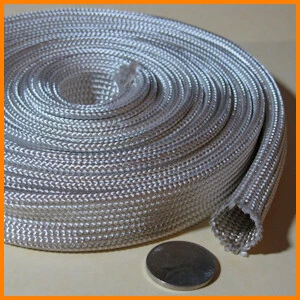

Plain Fiberglass Heat Treated Braided Sleeve

Braided Fiberglass Sleeve Heat Treated

High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent
