Silicone Rubber Electrical Tapes
All tapes meet 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
Polamco 100P323 Equivalent Silicone Rubber Self-Fusing Electrical Tape meeting MIL-I-22444
Polamco 100P323 Equivalent Silicone Rubber Self-Fusing Electrical Tape meeting MIL-I-22444
500°F / 260°C Continuous Exposure: Higher Intermittent
FlameShield™ Polamco 100P323 equivalent silicone rubber electrical tapes meet MIL-I-22444 specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
Polamco 100P323 equivalent tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

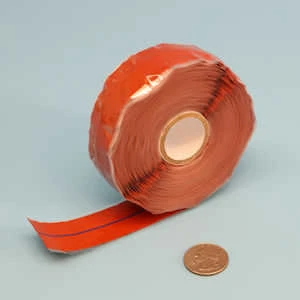

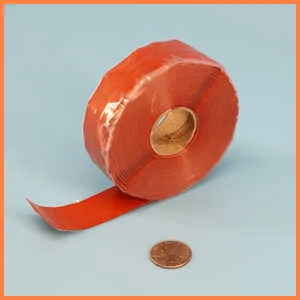

This tape is oxide-red color. 100P323 is a supported tape containing a sinusoidal weave glass reinforcement layer. Two roll lengths are available; 12 and 20 yards.
Polamco 100P323 equivalent tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp of electrical connectors.
Polamco 100P323
Silicone Rubber Tape
Quantity discounts
2-9; 10-19; 20-49; 50+
Documents:
CofC / Test Reports
Part Number: T-SR-100P323-20Y-16-OR
