Main Form Products > Hoses > Material Handling
Hose - Material Handling Applications - Summary

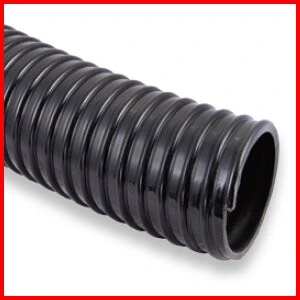

Hose - Material Handling - Polyurethane with PVC cover - Up to 40 PSI
Abrasion resistant, polyurethane tube for material handling in dry applications, such as sandblast recovery lines, roof rock cleaning and other abrasive applications.
Constructed of static dissipating material that remains flexible at low temperature for ease of handling.
Sold in standard lengths only: Standard lengths are 50 and 100 feet for sizes up to 5" ID. 20', 50' and 100' lengths for 6" size. 20' standard length for 8" size.
Tech Data:
Tube: Polyurethane, smooth
Cover: Black, PVC with rigid helix
Safety Factor: 3:1
Working Pressure: Up to 40 PSI
Temperature: -40F to 150F
Hose - Material Handling - Polyurethane with PVC cover - Up to 50 PSI
Abrasion resistant, polyurethane tube for material handling in dry applications, such as vacuum trucks, pneumatic conveying systems, fly ash collection and other abrasive applications.
Constructed of static dissipating material that remains flexible at low temperature for ease of handling.
Sold in standard lengths only: Standard lengths are 50 and 100 feet for sizes up to 6" ID. 20' standard length for 8" size.
Tech Data:
Tube: Polyurethane, smooth
Cover: Black, PVC with rigid helix
Safety Factor: 3:1
Working Pressure: Up to 50 PSI
Temperature: -40F to 150F
Hose - Material Handling - Lightweight Polyurethane with PVC helix - Up to 20 PSI
Lightweight and extremely flexible hose, ideal for leaf colletion, lawn cleaning and concrete surface preparation equipment.
The smooth bore provides high abrasion resistance and unrestricted flow.
Standard lengths are 50 feet.
Tech Data:
Construction: Clear, Polyurethane (ester based), smooth bore, exposed orange PVC right hand helix
Safety Factor: 3:1
Working Pressure: Up to 20 PSI
Temperature: -4F to 150F
Hose - Material Handling - Food Grade PVC with PVC helix - Up to 45 PSI
Heavy duty food grade suction hose for dry or wet materials. Hose complies with applicable FDA and 3A requirements and USDA for use in meat and poultry plants.
Clear PVC and clear helix allows for visual confirmation of flow. Smooth bore eliminates build-up and clogging. Highly flexible.
Standard length is 100 feet for sizes up to 6". 20' and 100' standard lengths for 6" and 8" size. Bend radius is double the ID size.
Tech Data:
Construction: Clear PVC with smooth bore and a clear PVC right-handed helix
Safety Factor: 3:1
Working Pressure: Up to 45 PSI
Temperature: -4F to 150F
Compliance: FDA, USDA, 3A
Marking: FOOD GRADE SUCTION HOSE - <ID> - LOT
Hose - Material Handling - Food Grade PVC with PVC helix and grounding wire - Up to 45 PSI
Heavy duty food grade suction hose for dry or wet materials. Hose complies with applicable FDA and 3A requirements and USDA for use in meat and poultry plants.
Clear PVC and clear helix allows for visual confirmation of flow. Smooth bore eliminates build-up and clogging. Highly flexible.
Standard length is 100 feet for sizes up to 6". 20' and 100' standard lengths for 6" and 8" size. Bend radius is double the ID size.
Grounding wire for static electricity dissipation when properly connected.
Tech Data:
Construction: Clear PVC with smooth bore and a clear PVC right-handed helix and grounding wire.
Safety Factor: 3:1
Working Pressure: Up to 45 PSI
Temperature: -4F to 150F
Compliance: FDA, USDA, 3A
Marking: GROUNDED FOOD GRADE SUCTION HOSE - <ID> - LOT
Hose - Material Handling - Premium Blue Polyurethane with blue PVC helix - Up to 40 PSI
Premium material handling hose with a thick smooth polyurethane tube. Ideal for dry applications where high abrasion resistance is required.
Formulated for static dissipation.
Standard lengths of 100 feet for sizes up to 4". 20', 50' and 100' lengths for sizes 5" and 6".
High flexibility in cold temperatures.
Tech Data:
Tube: Clear Polyurethane.
Cover: Blue, HMW PVC, static dissipating
Reinforcement: PVC helix
Safety Factor: 3:1
Working Pressure: Up to 40 PSI
Temperature: -40F to 150F
Marking: URE-HD-BLUE - <ID> - LOT
Hose - Material Handling - SBR PVC helix - Up to 45 PSI
Specially compounded SBR to result in a vacuum hose for wet and dry material applications. Vacuum trucks, hydro-excavators, sewer and storm drain cleaning.
Static disipating carbon black in the compound makes it suitable for sand, gravel, dry cement, metallic chips, grains and light abrasives.
Standard lengths are 100 feet for sizes up to 3". 50 and 100 feet standard lengths for sizes 4" to 6". 50 foot standard length for 8" size.
Tech Data:
Construction: SBR with right-hand PVC helix; static dissipating
Safety Factor: 3:1
Working Pressure: Up to 45 PSI
Temperature: -40F to 158F
Marking: ULTRAVAC SBR - <ID> - LOT
Hose - Material Handling - Polyurethane with PVC helix - Vacuum Applications - Up to 30 PSI
Heavy-duty abrasion resistant suction hose for use in a variety of wet and dry vacuu applications including vacuum trucks, hydro-excavators, sewer and storm drain cleaners, street sweepers.
Can handle a variety of materials such as crushed stone, sand, gravels, dry-cement, gains and slurries.
The formulation of the tube includes compounds that make it permanently conductive for static dissipation.
Standard lengths are 100 feet for sizes up to 6". 50 and 100 feet standard lengths for size 8".
Not recommended for constant contact with fuels or petroleum products.
Tech Data:
Construction: Polyurethane with a left-hand PVC helix; static dissipating
Safety Factor: 3:1
Working Pressure: Up to 30 PSI
Temperature: -40F to 158F
Marking: POLYURETHANE SUCTION HOSE - <ID> - LOT
Hose - Material Handling - Polyurethanelined PVC with PVC helix - Vacuum Applications - Up to 40 PSI
Abrasion resistant suction hose for use in a variety of dry vacuum applications including sandblast recovery lines, roof rock clearing and other abrasive applications.
Polyurethane lined PVC tube with PVC right-hand helix.
The formulation of the tube includes compounds that make it permanently conductive for static dissipation.
Standard lengths are 50 and 100 feet for sizes up to 5". 20, 50 and 100 feet standard lengths for size 6". 20 and 50 feet standard length for 8" size.
Tech Data:
Construction: Polyurethane lined PVC with a left-hand PVC helix; static dissipating
Safety Factor: 3:1
Working Pressure: Up to 40 PSI
Temperature: -40F to 150F
Hose - Material Handling - Synthetic Rubber Hot Tar & Asphalt - Up to 150 PSI
Rugged hose specifically designed for the transfer of petroleum based products such as high temperature asphalt, tar, hot oils.
Suitable for suction and discharge on rail cars, tank trucks, bulk stations, storage tanks and disposing units.
Standrad lengths of 100 and 200 feet. Available in cut lengths. By-the-foot and by-the-yard.
Working pressure of 150 PSI. Vacuum rating 29 in/HG.
Tech Data:
Tube: Synthetic rubber, heat & abrasion resistant
Safety Factor: 4:1
Working Pressure: Up to 150 PSI
Temperature: -20F to 350F (intermittent)
Marking: HOT TAR & ASPHALT HOSE 150 PSI WP
Hose - Material Handling - EPDM Hot Air Blower Hose - Up to 150 PSI
Premium EPDM results in relaible service life for connecting the blower to flow lines on dry-bulk trailers.
Standrad lengths of 100 and 200 feet. Available in cut lengths. By-the-foot and by-the-yard.
Working pressure of 150 PSI. Vacuum rating 30 in/HG.
Tech Data:
Tube: Black, EPDM, heat resistant
Cover: Black or Brown, EPDM, high heat resistant
Safety Factor: 4:1
Working Pressure: Up to 150 PSI
Temperature: -40F to 225F (350F intermittent)
Marking: HOT AIR BLOWER HOSE 150 PSI WP
Hose - Material Handling - Bulk Material Discharge Hose - Up to 75 PSI
NR/SBR blend, soft walled 2-ply hose for transfer of dry materials and slurries. Ideal for dry cement, pebble lime and other abrasive media.
Conductive for static dissipation.
Premium EPDM results in relaible service life for connecting the blower to flow lines on dry-bulk trailers.
Standrad lengths of 100 feet. Available in cut lengths. By-the-foot and by-the-yard.
Working pressure of 75 PSI.
Tech Data:
Tube: Black, NR/SBR compound, abrasion resistant
Cover: Black, NR/SBR, abrasion resistant
Safety Factor: 4:1
Working Pressure: Up to 150 PSI
Temperature: -40F to 180F (350F intermittent)
Marking: DRY CEMENT DELIVERY HOSE STATIC CONDUCTIVE TUBE 75 PSI WP
Hose - Material Handling - Sandblast Hose - Up to 150 PSI
Can be used with grit, aluminum oxide, glass beads, etc., and is deal for rugged service in shipyards and construction sites.
Conductive for static dissipation.
Standrad lengths of 50 feet. 1 1/2" ID size standard length of 100 feet also available.
Working pressure of 150 PSI.
Tech Data:
Tube: Black, SBR/Gum compound, abrasion resistant, static dissipating
Cover: Black, SBR, pinpricked for early failure detection
Reinforcement: High tensile tire cord plies
Safety Factor: 4:1
Working Pressure: Up to 150 PSI
Temperature: -40F to 190F
Marking: PREMIUM GRADE SANDBLAST HOSE 150 PSI WP
Hose - Material Handling - Commodity Discharge - Up to 150 PSI
Soft wall hose with high abrasion resistance tube. Ideal for applications where discharging of abrasive media is required.
Conductive for static dissipation. 2 ply construction.
Standrad lengths of 100 feet. Available in cut lengths. By-the-foot and by-the-yard.
Tech Data:
Tube: Black, NR/NBR compound, abrasion resistant, static dissipating
Cover: Black, SBR
Reinforcement: High tensile tire cord plies
Safety Factor: 4:1
Working Pressure: Up to 180 PSI
Temperature: -40F to 190F
Marking: WET-DRY BULK COMMODITY DISCHARGE HOSE STATIC CONDUCTIVE TUBE XXX PSI WP
Hose - Material Handling - Commodity Suction - Up to 150 PSI
Soft wall hose with high abrasion resistance tube. Ideal for applications where discharging of abrasive media is required. Not for food or potable water. Conductive for static dissipation. 2 ply construction.
Standrad lengths of 100 feet up to 4" size. 50 foot standard length from 5" to 12" size. Available in cut lengths. By-the-foot and by-the-yard.
Sizes 5" to 12" are convoluted cover for extra flexibility.
Vacuum rating 28 in./HG for sizes 2" to 5". 25 in/HG for size 6" size. 20 in.HG for sizes 8" to 12".
Tech Data:
Tube: Black, NR/NBR compound, abrasion resistant, static dissipating
Cover: Black, SBR
Reinforcement: High tensile tire cord plies
Safety Factor: 4:1
Working Pressure: Up to 150 PSI
Temperature: -40F to 180F
Marking: WET-DRY BULK COMMODITY SUCTION HOSE STATIC CONDUCTIVE TUBE XXX PSI WP
Hose - Material Handling - FDA Commodity - Up to 150 PSI
The premier premium material handling hose in the industry. Suitable for abrasive materials, wet or dry.
Also used for food materials, flour, plastic pellets, sandblasting.
Tube meets FDA for food and potable water.
Standrad lengths of 100 feet up to 4" size. 50 foot standard length from 5" to 8" size. 25 foot lengths for 10" and 12" sizes.
Available in cut lengths. By-the-foot and by-the-yard.
Vacuum rating 30 in./HG for sizes 2" to 4". 28 in/HG for 5" size. 20 in./HG for sizes 8" to 12".
Tech Data:
Tube: White, natural gum rubber
Cover: Green, SBR
Reinforcement: High tensile tire cord plies plus helix wire
Safety Factor: 4:1
Working Pressure: Up to 150 PSI
Temperature: -40F to 190F
Marking: MATERIALS/FDA TRANSFER - NATURAL RUBBER TUBE
Hose - Material Handling - Elephant Trunk Hose - Up to 50 PSI
Premium quality hose with 1/8" tube thickness for high abrasion and cut resistance. Ideal for gravity flow of materials such as concrete and abrasives.
Standrad lengths of 50 feet for 8 and 10" size. Standard length of 25 feet for 12, 14 and 16" size
Available in cut lengths. By-the-foot and by-the-yard.
Tech Data:
Tube: Tan, pure gum
Cover: Black, NR.SBR compound
Reinforcement: High tensile tire cord plies
Safety Factor: 3:1
Working Pressure: Up to 50 PSI
Temperature: -20F to 180F
Marking: ELEPHANT TRUNK HOSE 50 PSI WP
Hose - Material Handling - Dredge Hose - Up to 125 PSI
Rugged and abrasion resistant tube and cover for flexible connections between pipes used in dredging applications.
Tube wall thickness 3/8".
Standrad lengths of 50 feet. Available in cut lengths. By-the-foot and by-the-yard.
Tech Data:
Tube: Black, SBR compound, 3/8" thick, abrasion resistant
Cover: Black, SBR compound, 3/32" thick, weather and abrasion resistant
Reinforcement: High tensile tire cord plies
Safety Factor: 3:1
Working Pressure: Up to 125 PSI
Temperature: -20F to 180F
Marking: CONCRETE PLACEMENT HOSE - WIRE XX" 1230 PSI (85 BAR) WP XX LBS/FT (F.W.C.)
MEETS OR EXCEEDS ASME B30.27-2009
Hose - Material Handling - Concrete Placement Hose - Up to 1230 PSI
Heavy-duty hose designed to handle the most abrasive applications and weather conditions.
Suitable for handling wet concrete in areas where flex is critical.
Ideal for use on high pressure concrete pumps or boom trucks where a tough, durable hose is required for high pressure concrete pumping and placing applications
Working pressure of 1230 PSI / 85 BAR. Burst pressure of 2650 PSI / 170 BAR. Meets ASME B3.27-2009 specifications
Standrad lengths of 100 feet up to 4" size. 50 foot standard lengths for 5" size. Available in cut lengths. By-the-foot and by-the-yard.
Tech Data:
Tube: Black, GUM/SBR compound, wear resistant, abrasion resistant
Cover: Black, SBR compound, cut and gouge weather and abrasion resistant
Reinforcement: Multiple steel wire plies
Safety Factor: 2:1 (per ASME standards)
Working Pressure: Up to 1230 PSI
Temperature: -40F to 200F
Marking: NONE
Hose - Material Handling - Textile Concrete Placement Hose - Up to 1230 PSI
Heavy-duty hose designed to handle the abrasive applications such as plaster, grout and concrete.
Standrad lengths of 100 feet. 50 foot lengths also available for 2" and 3" sizes. Available in cut lengths. By-the-foot and by-the-yard.
Working pressure is 1230 PSI / 85 BAR. Burst pressure is 2650 PSI / 170 BAR
Tech Data:
Tube: Black, GUM/SBR compound, wear resistant, abrasion resistant
Cover: Black, SBR compound, cut and gouge weather and abrasion resistant
Reinforcement: Multiple steel wire plies
Safety Factor: 2:1 (per ASME standards)
Working Pressure: Up to 1230 PSI
Temperature: -40F to 200F
Marking: CONCRETE PLACEMENT HOSE - WIRE XX" 1230 PSI (85 BAR) WP XX LBS/FT (F.W.C.)
MEETS OR EXCEEDS ASME B30.27-2009
