Silicone Rubber Electrical Tapes MIL-I-46852 / A-A-59163 / MIL-I-22444
All tapes meet 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
Airbus ASNA 5107-2501 5107-2502 5107-2503 Equivalent Silicone Rubber Electrical Insulation Tape
500°F / 260°C Continuous Exposure: Higher Intermittent
FlameShieldä ASNA5107 Airbus equivalent silicone rubber tapes meet MIL-I-22444 specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments. Available in 3 widths: 5107-2501, 5107-2502, 5107-2503.
ASNA 5107 equivalent tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

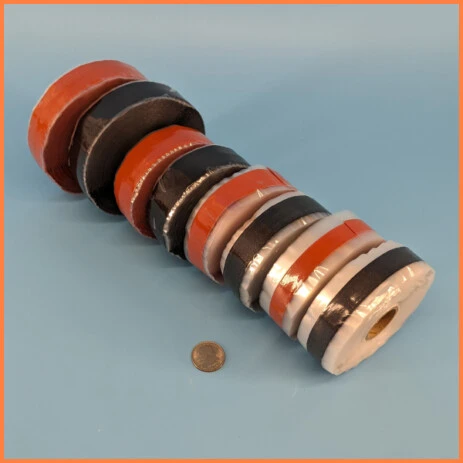

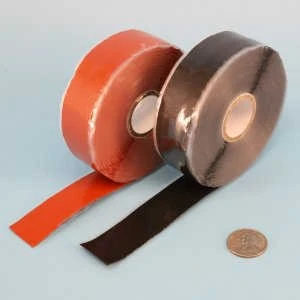

These tapes are available in red and black.
ASNA 5107 equivalent tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.
Meets the following specifications:
· MIL-I-22444
· GE A50493
· AE 26495-001
· NSN 5970-01-325-8971 (SA version only), 5970-14-464-7312 (68N) is oxide-red
Airbus ASNA5107
Silicone Rubber Tapes
Documents:
CofC / Test Reports
